END CONNECTORS ON PlastiForm® AND WOOD
CURB & GUTTER BRACKETS
PFA_BR-CG
Use with our 2x6 and 2x12 boards to make perfect curbs without costly machinery.
Adjustable ones now available!

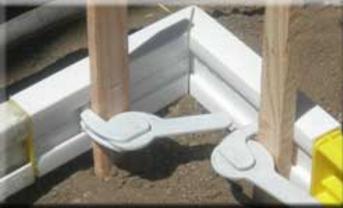

CAMLOCKS
Large or Small
Large....PFO_CL_L
Small....PFA_CL_S
Camlocks twist into the dovetail slot, connecting wood or metal stakes to the PlastiForm® anywhere along the length of the board. Nylon fiberglass.
LARGE - 3/8” to 3/4” for rebar, round steel and wood stakes.
SMALL - 1/4” to 3/8” flat iron stakes and thinner pins.
CORNER ANGLES
2 x4..........PFO_AN_04
2 x 6.........PFO_AN_06
2 x 8.........PFO_AN_08
2 x 10........PFO_AN_10
2 x 12........PFO_AN_12
All-angle corner connectors swing a full 270 degrees to form inside and outside corners or anywhere in between. New type available!
FREIGHT NOT INCLUDED.
Prices vary according to zip code, business or destination, weight and length. Delivery usually takes about 6 business days.
SHORT END CONNECTORS
allow boards to snap together for straight work and interlock to wood end connectors.
2 x 4 SHORT CONNECTOR
PFA_CO-0204_SH
2 x 6 SHORT CONNECTOR
PFA_CO-0206_SH
BOARDS
2"x4", 2"x6", 2"x8",2x10, 2"x12"available in12-foot and 16-foot lengths.
5 2x4x12's = 60' weight 28.05 lbs
WOOD ENDCONNECTORS
Screw wood to WOOD connectors and interlock with PlastiForm® boards to complete short runs.
2 x 4.........PFA_CO-0204_WO
2 x 6.........PFA_CO-0206_WO
RADIUS WORK
Add some pizazz to your jobs with smooth curves and tight radiuses. Radiuses:
2x4: 3'
2x6: 4'
2x8: 5'
2x10: 5'.5"
2x12: 6'
BOARDDIMENSIONS
2x4’s are 1.5” x 3.5”
2x6’s are 1.5” x6”
2x8 are 1.5" x 8"
2x10 are 1.5" x 10"
2x12 are 1.5" x 11 3/4"
LENGTHS
12or 16foot long
CONNECTORS
LONG FLEXIBLE "H" CONNECTORS
SLIDE INSIDE boards and allow for a smooth radius or straight work even at the connection.
2 x 4 LONG CONNECTOR
PFA_CO-0204_LO
2 x 6 LONG CONNECTOR
PFA_CO-0206_LO
2 fit 2x12 board.
2 x 12 LONG CONNECTOR
PFA_CO-0212_LO
5 2X6X12 = 60'. WEIGHT is 57.6 LBS.
RIGID BOARDS - no flex
2 x 4 Standard Rigid PFO_RBD_0412
2 x 4 Standard Rigid PFO_RBD_0416
2 x 6 Standard Rigid PFO_RBD_0612
2 x 6 Standard Rigid PFO_RBD_0616
STAKE SPACING (RECOMMENDED)
Straight Work - 2'.5" - 3'
Radius - 3' - 4'
FORM OIL USAGE
Recommended - Use any standard type
WEIGHT - 1/3 the weight of wood
2x4's - 0.5 lbs per foot
2x6's - 0.8 lbs per foot
2x8's - 1 lbs per foot
2x10's - 1.25 lbs per foot
2x12's - 1.5 lbs per foot
CLEANING
Rinse with water. Wipe with cloth.
If cement is dried, bend board.
If embedded use scrubby sponge
or muriatic acid.
STACKAS HIGH AS STAKE ALLOWS.
Use Packing Tape to cover joints for the smoothest finish and no grinding later.
Little truck carrying 1280 feet of 2x4 and 640 feet of 2x6.
2 x 4 BOARDS
12-ft or 16-ft lengths
Premium 12'..........PFA_BD-4012
Standard 12'.........PFO_BD-4012
Premium 16'..........PFA_BD-0416
Standard 16..........PFO_BD-0416
PFO - Bundles of 5
PFA - Bundles of 4
2 x 6 BOARDS
12-ft or 16-ft lengths
Premium 12'..........PFA_BD-0612
Standard 12'.........PFO_BD-0612
Premium 16'..........PFA_BD-0616
Standard 16..........PFO_BD-0616
PFO - Bundles of 5
PFA - Bundles of 4
2 x 8 BOARDS - Bundles of 3
12-ft or 16-ft
Standard 12' PFO_BD-0812
Standard 16' PFO_BD-0816
2 x 10 BOARDS - Bundles of 2
12-ft or 16-ft
Standard 12' PFO_BD-1012
Standard 16' PFO_BD-1016
2 x 12 BOARDS - Bundles of 2
12-ft or 16-ft
Standard 12' PFO_BD-1212
Standard 16' PFO_BD-1216
THE HEART OF THE SYSTEM'S SPEED
is PlastiForm®'s dovetail slot that runs the length of the back of the board. Place camlocks, stakes, and kickers anywhere along the backside of the form. Boards connect easily to one another. Use camlocks to anchor boards to wood stakes, flat or round metal stakes, or rebar pins. For straight work reinforce PlastiForm® with metal conduit, PVC, or rebar for maximum rigidity or use our rigid boards.
CANTILEVER BRACKET
PFA_BR_CA
Use with our 2x6 and 2x4 boards for
pool, counter, step and bench edges.
Superior Flatwork
Standard (PFO) PlastiForm® Boards
Use for foundations, flatwork, straight work, radius work and footings. Standard PlastiForm® Boards have a10-year guaranteefor normal use.
Premium (PFA) PlastiForm® Boards
All the benefits of our standard boards with additional features. Made in USA, we have complete control over quality and workmanship. Premium boards are thicker, bend further, and are infused withsiliconfor less adhesion and optimal stripping. Boards are also infused with UVprotectant andTitanium White for board stability in sun and heat. Premium PlastiForm® Boards have a lifetime guaranteefor normal use.
